Фильтр EMI AC
>

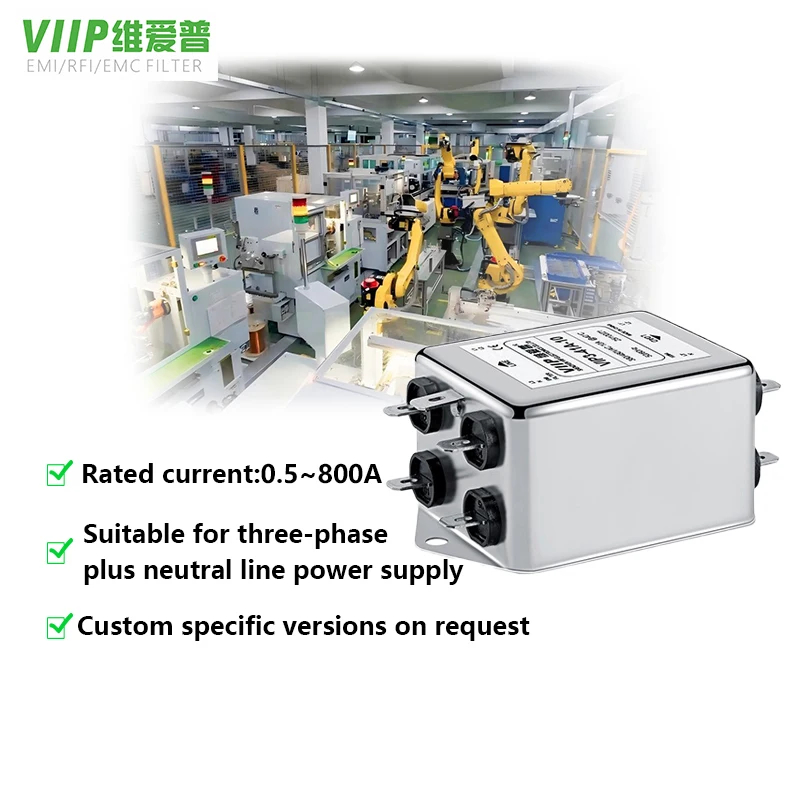

380V Input AC EMI Filter with 20A Rated Current and 440V Rated Voltage for Building Automation

380V Input AC EMI Filter with 20A Rated Current and 440V Rated Voltage for Building Automation

Наименование марки: VIIP
Номер модели: ВИП3-41А
МОК: 1 шт.
цена: 15USD
Подробная информация об упаковке: 33*33*18
Условия оплаты: Т/Т, Вестерн Юнион
Подробная информация
Место происхождения:
Китай
Сертификация:
CE TUV UL ROHS REACH
Входное сопротивление:
500 В постоянного тока/100 МОм МИН.
Номинальное напряжение:
110/250 В переменного тока
Номинальный ток:
0,5А-800А
Тип:
ЭМС-фильтр
Вносимая потеря:
60дБ-90дБ
Сертификация:
CE ROHS,CE CQC,UL.TUL
Поставка способности:
2000 шт в течение 10-15 дней
Выделить:

380V Input AC EMI Filter

,

20A Rated Current EMC Filter

,

440V Rated Voltage Low Pass Filter

Описание продукта
380V Input AC EMI Filter with Low Pass Transfer Function and Compact Structure for Building Automation
The 380V Input AC EMI Filter is designed for building automation systems and print machine hardware equipment, featuring a compact structure for space-limited applications.
Quick Specifications
  • Model Number: VIP4-1A-20
  • Type: EMI Filter
  • Place of Origin: China
  • Brand Name: VIIP
  • Transfer Function: Low Pass
  • Nominal Center Frequency: 150KHz-30MHz
  • Input Impedance: 50Ω
  • Insertion Loss: 20~100dB
  • Rated Voltage: 440V
  • Rated Current: 0.5A-800A
  • Environmental Temp: 50°C
  • Operating Frequency: 50/60HZ
  • Line to Ground: 2250VDC or 2000VAC
  • Certifications: UL, TUV, ISO9001, CE, ROHS
Product Description
This three-phase three-line power supply EMI filter features a compact structure for simple, time-saving installation. Its space-efficient design makes it ideal for applications with limited space while offering high cost-effectiveness.
Applications
Widely used in various electrical units including print machines, packing machines, textile equipment, industrial air conditioners, UPS systems, and medical equipment.
380V Input AC EMI Filter with 20A Rated Current and 440V Rated Voltage for Building Automation 0 380V Input AC EMI Filter with 20A Rated Current and 440V Rated Voltage for Building Automation 1
Our Advantages
Global Sales Network
Products exported to Europe, the United States, South Korea, Southeast Asia and other regions.
Advanced Hardware Equipment
Fully automatic magnetic material detection equipment and production lines with anti-interference magnetic core production base.
Integrated Technical Service
Combining R&D, production, sales of anti-interference (EMC) electronic components with EMC testing services.
Quality Management
Strict quality standards implementation with continuous improvement processes focused on customer requirements.
